Tire Graining in Motorsport: What It Is, Why It Happens, and How to Prevent It

Tire management separates fast drivers from consistent winners. One of the most common—and frustrating—forms of tire degradation is graining. If you've ever come off track wondering why your grip suddenly disappeared, or noticed your tire surface looking like it went through a cheese grater, you've likely experienced graining firsthand.

In this guide, we'll break down exactly what graining is, what causes it, and most importantly, how you can prevent it from ruining your track day or race weekend.

Graining occurs when the top layer of the tire's rubber compound overheats relative to the layers beneath it. This creates a thermal mismatch: the surface becomes too hot and soft while the carcass underneath remains cooler and stiffer.

The result? Small pieces of rubber literally tear away from the surface, creating a rough, granular texture. This debris rolls around under the contact patch, dramatically reducing grip—sometimes by as much as 2-3 seconds per lap on a typical club circuit.

Unlike blistering (which creates bubbles from internal heat) or flat-spotting (caused by lockups), graining is a surface-level phenomenon that primarily affects grip through mechanical degradation rather than structural damage.

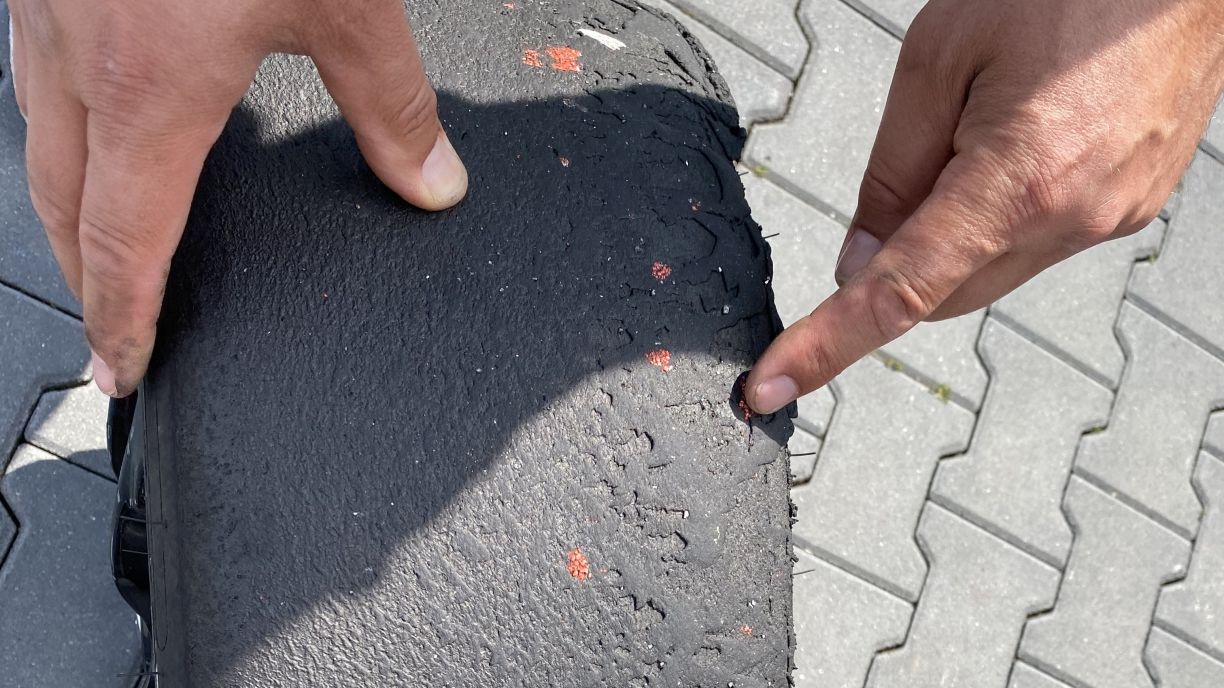

Visual inspection tells the story. Grained tires display several telltale characteristics:

The surface appears rough and pebbled rather than smooth and shiny. You'll see small, irregular pieces of rubber that look like they're peeling away. The texture resembles sandpaper or, in severe cases, a worn eraser.

Often you'll also notice pick-up—colored rubber debris from track markers, curbing paint, or other cars' tire marbles stuck to the surface. This pick-up accelerates the grip loss because it further insulates the tire from proper heat transfer.

The graining pattern typically concentrates on the outer shoulder for front tires (from cornering loads) or across the full width of rear tires (from acceleration forces).

Understanding the root causes helps you develop prevention strategies.

Insufficient Tire Temperature

This is the number one culprit. When you push hard on tires that haven't reached their optimal operating window, the surface heats up through friction while the carcass remains cold. Racing slicks and semi-slicks like Yokohama A052, Hankook TD, or Nankang AR-1 are particularly susceptible because their soft compounds are designed for specific temperature ranges.

The classic scenario: you leave pit lane, do one warm-up lap, and then immediately attack the circuit at 100%. Your tire surface spikes to working temperature while the bulk of the tire sits 20-30°C below optimal. Graining begins within corners.

Incorrect Tire Pressure

Pressure directly affects how the tire flexes and generates heat. Too low, and the tire "squirms" excessively—the sidewall rolls under load, causing the surface to slide and overheat relative to the structure. Too high, and you reduce contact patch area while making the tire skip across the surface.

For most track-focused tires, the optimal hot pressure falls between 1.9-2.2 bar (28-32 psi), but this varies significantly by compound, vehicle weight, and ambient conditions.

Aggressive Driving Inputs

Sharp steering inputs, abrupt throttle applications, and harsh braking create instantaneous heat spikes at the contact patch. If your tires aren't fully up to temperature, these aggressive inputs cause localized overheating that initiates graining.

This is especially problematic in time attack formats where drivers feel pressure to push immediately rather than building speed progressively.

Compound vs. Track Temperature Mismatch

Every tire compound has an optimal working range. Running a soft compound on a cold morning or a hard compound in summer heat creates thermal mismatches that promote graining. Understanding your specific tire's window is essential for compound selection.

Suspension Setup Issues

Excessive negative camber, improper toe settings, or mismatched spring rates can cause uneven tire loading. This creates hot spots on specific parts of the tread while other areas remain underworked and cold—a recipe for localized graining.

Prevention requires a systematic approach across multiple variables.

Warm Your Tires Properly - Resist the temptation to attack immediately. Spend 2-3 laps progressively building speed, using smooth inputs to generate heat throughout the tire structure—not just the surface. Weave gently on straights if regulations permit. Focus on gradual brake application and progressive throttle.

The goal is uniform heat distribution. You want the carcass temperature within 10-15°C of surface temperature before pushing to the limit.

Optimize Tire Pressure - Start with manufacturer recommendations, then adjust based on measured hot pressures. Invest in a quality pyrometer and pressure gauge. Check temperatures and pressures immediately after your session—the data is useless once the tires cool.

If you're seeing graining primarily on outer shoulders, consider slightly higher pressures. Center-focused graining often indicates excessive pressure.

Match Compound to Conditions - Check ambient and track temperatures before selecting your tire. Colder conditions (below 15°C ambient) favor softer compounds. Warmer conditions (above 25°C) may require harder compounds to prevent both graining and excessive wear.

Smooth Your Inputs - Work on driving technique. The fastest drivers are often the smoothest—they load tires progressively rather than shocking them with aggressive inputs. Trail braking, progressive throttle application, and fluid steering transitions all help manage tire temperatures.

Use Tire Warmers When Permitted - If your series or event allows tire warmers, use them. Pre-heating tires to near operating temperature eliminates the vulnerable warm-up phase where most graining damage occurs.

Here's where data becomes your competitive advantage. Without telemetry, tire management is largely guesswork based on feel and visual inspection. With proper data, you can make precise, informed decisions.

Tire temperature monitoring reveals exactly what's happening across the contact patch. You can see thermal gradients developing before graining becomes visible—and adjust your approach mid-session rather than discovering the damage afterward.

GPS and IMU data show how your driving inputs correlate with tire stress. By analyzing lateral and longitudinal acceleration traces, you can identify specific corners or sections where you're overworking the tires.

Lap time degradation patterns help distinguish between grip loss from graining versus other factors like fuel load or track evolution.

This is exactly why we're building Vetkuro—to give amateur and semi-professional drivers access to the kind of tire analysis data that professional teams have used for decades. By combining multiple sensor inputs with intelligent visualization, you can move from reactive tire management to proactive optimization

Graining is preventable. It requires attention to tire warm-up procedures, proper pressure management, appropriate compound selection, and smooth driving technique. The drivers who master tire management consistently outperform those who simply chase outright speed without considering degradation.

Start by implementing proper warm-up routines and pressure monitoring. As you gather more data—whether through pyrometer readings or comprehensive telemetry—you'll develop an intuitive understanding of how your specific tire and car combination behaves.

Your fastest lap doesn't matter if your tires are destroyed for the rest of the session. Consistent speed beats one-lap heroics every time.
